| Place of Origin: | China |
| Brand Name: | VIDO |
| Model Number: | WD012010520 |
| Product Name: | Laminate Trimmer | Power Input: | 520W |
|---|---|---|---|
| Rated Voltage: | 220-240V~50/60Hz | No Load Speed: | 30000/min |
| Net/Gross Weight: | 12.4/13.4Kg | Carton Size: | 398x290x280 Mm 0.032m³ |
| Collect Chuck Diameter: | 6mm, 1/4'' | High Light: | 520W laminate trimmer router,WD012010520 VIDO laminate trimmer,WD012010520 laminate trimmer router |

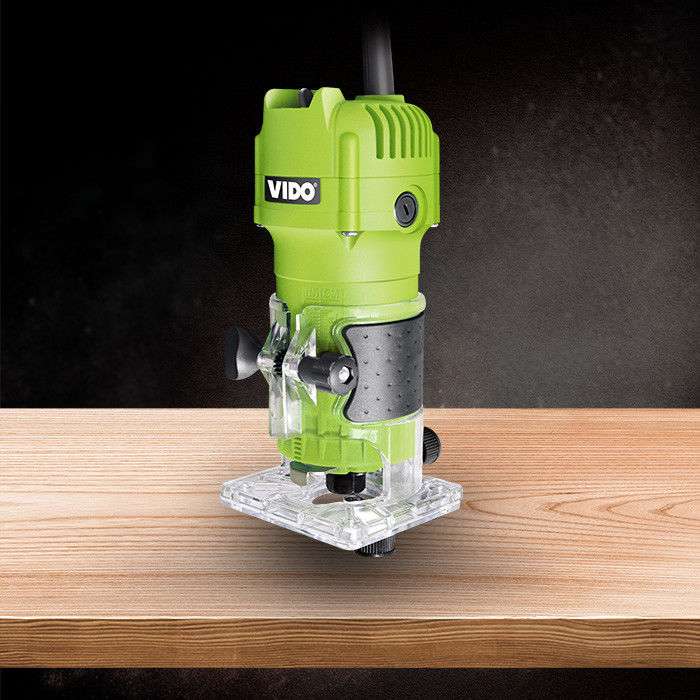

520W Laminate trimmer
I. Description of 520W Laminate trimmer
The 520W laminate trimmer machine is for trimming edges in wood, plastic and light building materials. It is also suitable for routing of grooves, profiles and slots as well as for contour routing. And the cutter of your trimmer rotates clockwise (viewed from top of trimmer). For more efficient cutting, move your trimmer from left to right as you stand facing the work piece. When cutting outside edges, move your trimmer anticlockwise and clockwise when cutting inside edges.
II. Specification of 520W Laminate trimmer
| Product name | Laminate trimmer |
| Power input: | 520W |
| Rated voltage: | 220-240V~50/60Hz |
| No load speed: | 30000/min |
| Collect chuck diameter: | 6mm, 1/4'' |
| Qty/CTN | 6pcs |
| Net/Gross weight: | 12.4/13.4Kg |
| Carton size: | 398x290x280 mm 0.032M3 |

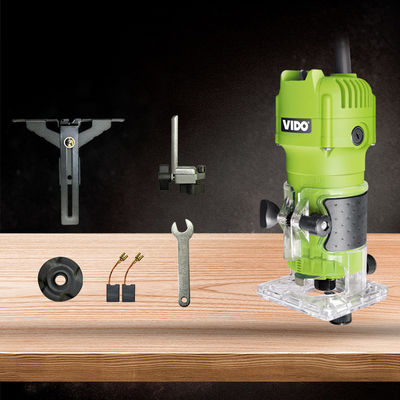

III. Accessories of 520W Laminate trimmer
1. Extra 1 set carbon brush
2. Straight guide & trimmer guide
3. Guide bushing
4. Spanner
5. Clip deflector
IV. Feature of 520W Laminate trimmer
1. 520W copper motor bears with a high temperature resistance and can work under heavy loaded capacity
2. High-precision router colleting structure make router bits change fast. Its vibration can keep under a low level.
3. Transparent base is designed for your precise carving and laminating
4. Ergonomic design makes it comfortable to grip
5. Easy carbon brush change to improve working efficiency
V. Application of 520W Laminate trimmer
VIDO 520w laminate trimmer can be widely used in wood slotting, processing, trimming, carving.
