| Place of Origin: | China |
| Brand Name: | VIDO |
| Model Number: | WD730111100 |
| Power Input: | 1100W/10A | Starting Pressure: | 1.5bar |
|---|---|---|---|
| Inlet/outlet Size: | 1x1'' | Rated Voltage: | 220-240V~50/60Hz |
| Max Working Temperature: | 60℃ | Net/Gross Weight: | 15.1/18.7Kg |
| Carton Size: | 525x484x365 Mm 0.093m³ | High Light: | WD730111100 Automatic Pump Control,1.5bar Automatic Pump Control,1.1KW Automatic Pump Control |

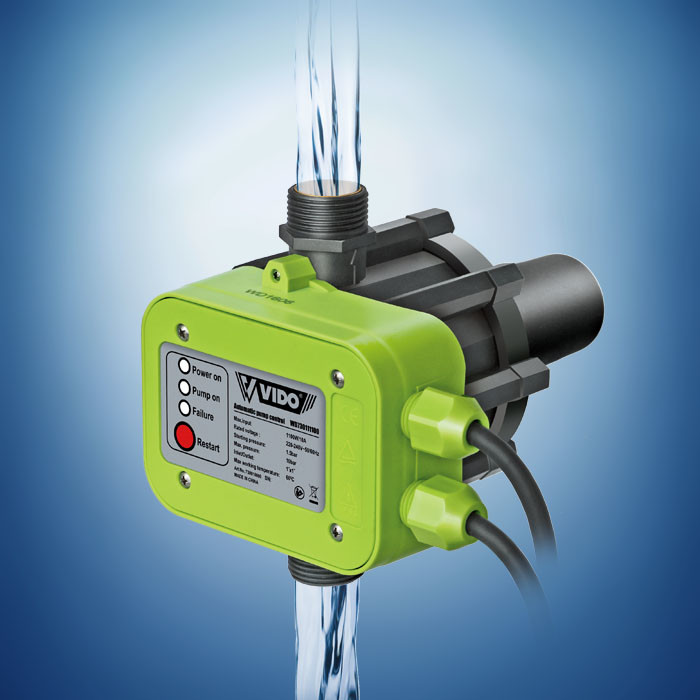

Automatic Pump Control WD730111100
I. Description
This model is the 1100w automatic pump control. It will work as a fully automatic switch together with the water pump to satisfy the water supply demanding of high pressure. This switch cost is affordable for every customer.
It is the good partner for QB60 and QB80. The tightness is of great significance for this machine. And there is one detail which is easy to be neglected. As the old saying goes, "evil lives in details". Here it is the material of the outlet and inlet nut. We use copper to make it to be anti-rust. You need one automatic switch like this.
II. Specification
| Power input: | 1100W/10A |
| Rated voltage: | 220-240V~50/60Hz |
| Max. working pressure | 10bar |
| Starting pressure: | 1.5bar |
| Inlet/outlet size: | 1x1'' |
| Max working temperature: | 60℃ |
| Qty/CTN: | 12pcs |
| Net/Gross weight: | 15.1/18.7Kg |
| Carton size: | 525x484x365 mm 0.093M3 |
III. Feature
1. Intelligent control system, start/stop automatically
2. Monitoring power supply, the pump running and shortage of water.
3. Water inlet/outlet of copper material makes it possible to keep low maintenance rate
4. Stable performance, low failure rate, more reliable and more longer service time
V. Application
VIDO 1100w automatic pump switch is controlled by electronic intelligently. With its digital display, the user can monitor the power supply, water pump operation, and water shortage condition. It will shutdown automatically when there is something wrong to protect itself.
