| Place of Origin: | China |
| Brand Name: | VIDO |
| Model Number: | WD060111020 |
| Input Capacity: | 8.36KVA | Rated Voltage: | 220-240V~50/60Hz |
|---|---|---|---|
| Product Name: | Inverter MMA DC Welding Machine | Output Range: | 10-200A DC |
| No-load Voltage: | 80V DC | Duty Cycle: | 60%@200A |
| Electrode Diameter: | 1.6-5.0mm | Net/Gross Weight: | 11.2/13.2Kg |
| Carton Size: | 390x380x340 Mm 0.05m³ | High Light: | Inverter MMA 200 Welding Machine,8.36KVA MMA 200 Welding Machine,digital display mma 200 inverter welder |

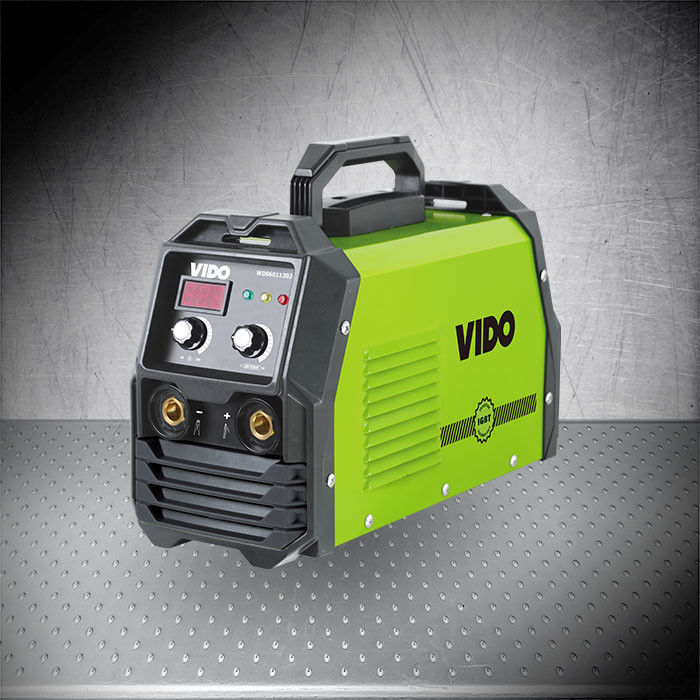

VIDO 8.36KVA Inverter MMA 200 Welding Machine
I. Description
The model is 200A inverter welding machine. It is the choice between the machine of 160A and 250A. This VIDO welding machine has the same outside with the other two. When you want on stronger welder to work at an affordable price, VIDO 200A welding machine is recommended.
II. Specification
| Input capacity: | 8.36KVA |
| Rated voltage: | 220-240V~50/60Hz |
| Output range: | 10-200A DC |
| No-load voltage: | 80V DC |
| Duty cycle: | 60%@200A |
| Electrode diameter: | 1.6-5.0mm |
| Qty/CTN | 2pcs |
| Net/Gross weight: | 11.2/13.2Kg |
| Carton size: | 390x380x340 mm 0.05M3 |
III. Accessories
1. Electrode holder with cable
2. Ground clamp with cable
3. Protective mask and hammer brush
4. Belt
IV. Feature

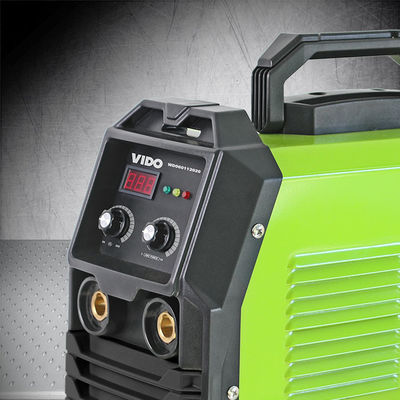

1. Some advanced design of the welding machine is as follows, such as digital display; IGBT technology, and the double circulate board.
2. The electrode adhesion is avoided due to the use of new technology.
3. The welding results of the 200A welding machine are almost absolutely perfect because of the stable current output.
6. There is one strip prepared in advance in case of any necessity to use it in some high working area.
V. Application
Under normal temperature, this 200A inverter welding machine can weld 4 mm electrode continuously.
