| Place of Origin: | China |
| Brand Name: | VIDO |
| Application: | Marble, Granite Cutting | Run-out Tolerance: | Lower, Better Balance, Low Vibration |
|---|---|---|---|
| Feature: | Low Abrasion Loss | High Light: | 12x200mm Masonry Drill Bits,VIDO Masonry Drill Bits,WD71081012200 Masonry Drill Bits |

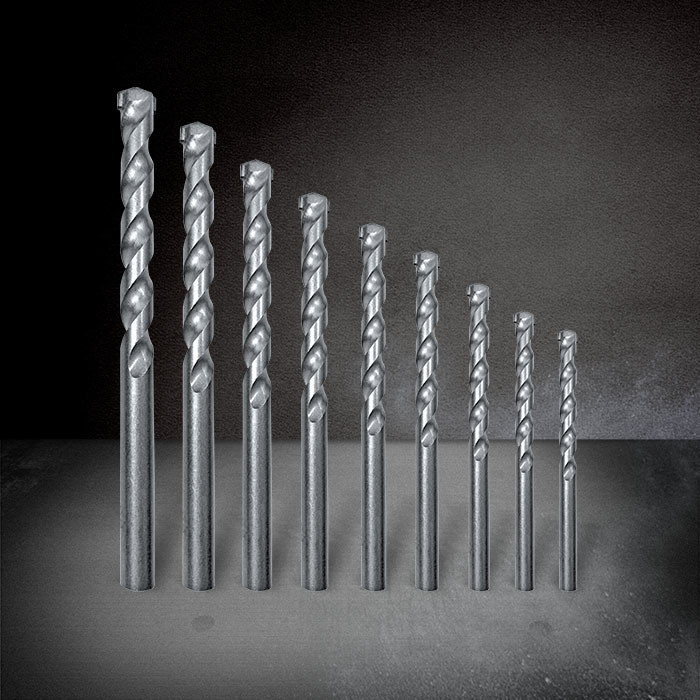

Masonry Drill Bits
I. Description
The masonry drill bits are used in impact drills. It has the round shake. The workmanship will exert its performance. VIDO masonry drill bits with the thickened drill heads could satisfy the general drilling tasks. The cost of it is relatively competitive for all users. This means you will surely purchase this masonry drill when ordering the VIDO impact drill.
II. Specification
| Model No. |
Diameter x Total Length (mm) |
Qty/CTN (pc) |
CBM (M3) |
Net/Gross Weight (Kg) |
| WD71081003060 | 3 x 60 | 400 | 0.019 | 4.0/5.0 |
| WD71081004075 | 4 x 75 | 400 | 0.019 | 4.0/5.0 |
| WD71081005085 | 5 x 85 | 400 | 0.019 | 4.0/5.0 |
| WD71081006100 | 6 x 100 | 400 | 0.019 | 6.5/7.5 |
| WD71081006150 | 6 x 150 | 300 | 0.019 | 5.0/6.0 |
| WD71081008120 | 8 x 120 | 400 | 0.019 | 14.4/15.4 |
| WD71081008150 | 8 x 150 | 300 | 0.019 | 12.5/13.5 |
| WD71081008200 | 8 x 200 | 200 | 0.019 | 11.0/12.0 |
| WD71081010120 | 10 x 120 | 400 | 0.019 | 17.2/18.2 |
| WD71081010150 | 10 x 150 | 300 | 0.019 | 16.3/17.3 |
| WD71081010200 | 10 x 200 | 200 | 0.019 | 14.5/15.5 |
| WD71081012150 | 12 x 150 | 300 | 0.019 | 24.4/25.4 |
| WD71081012200 | 12 x 200 | 200 | 0.019 | 21.6/22.6 |
III. Feature
1. Thickened drill head of high hardness providing longer working life process, not easy to be deformed
2. High concentricity, light shaking, making the whole drill work more efficient and accurate
3. Drilling more than 240 holes on #300 concrete plate with depth of 50mm
V. Application
VIDO masonry drill bits is suitable for drilling concrete and cement materials, such as brick wall, and concrete wall.
